Model

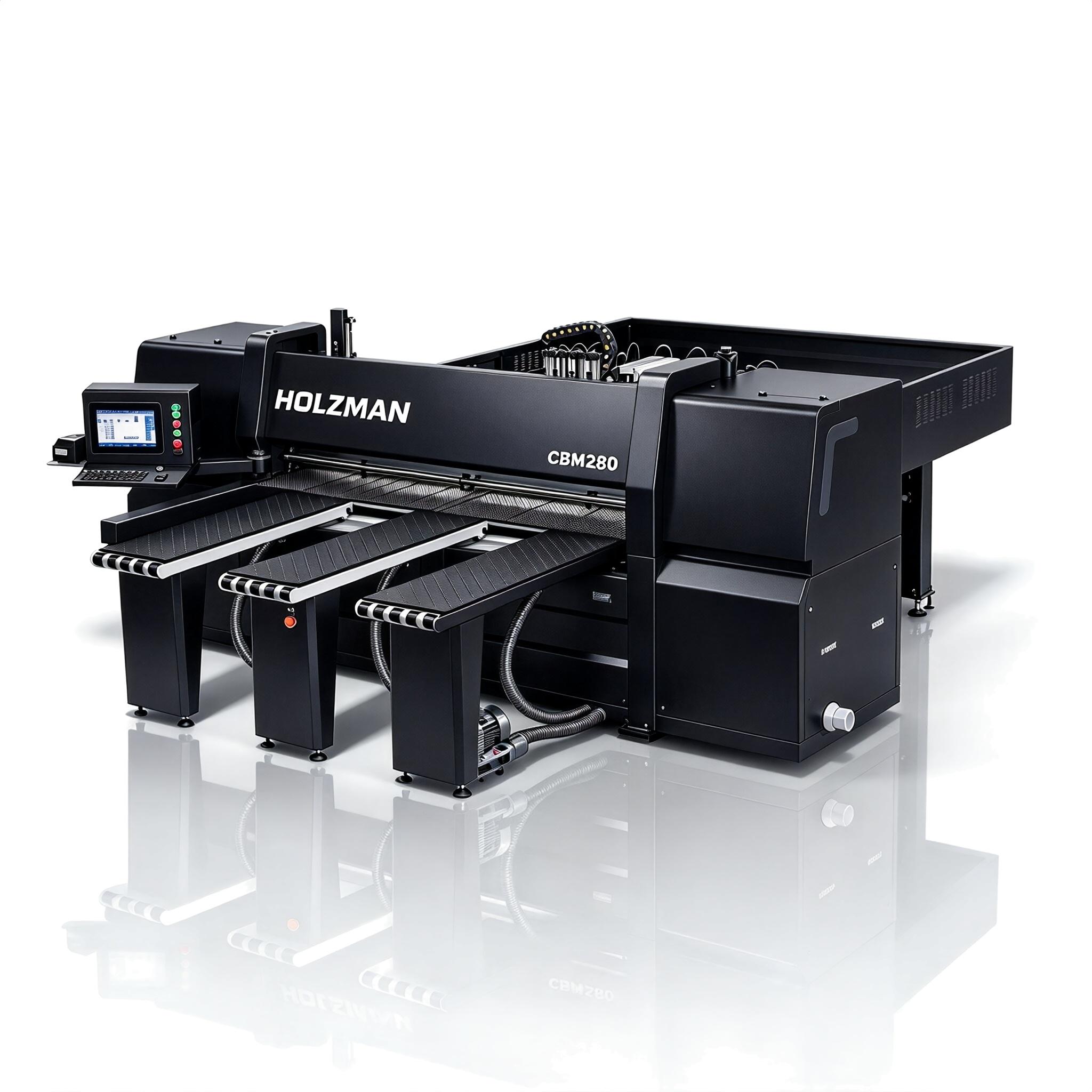

CBM280（Industrial top）

CBM330（Industrial top）

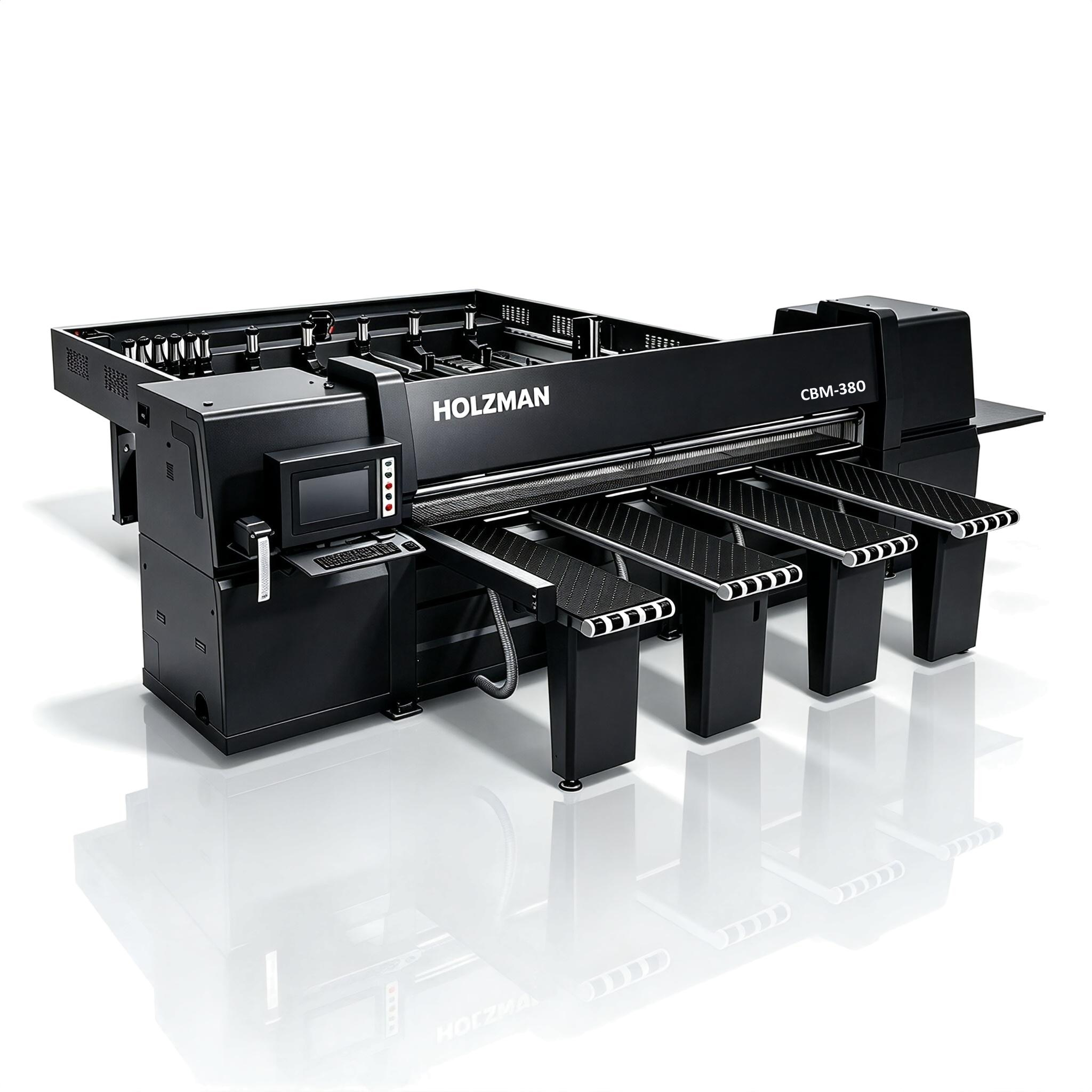

CBM380（Industrial top）

Industrial  PC

√

√

√

Label printer

option

option

option

Optimize software

option

option

option

Automatic above Lateral support

option

option

option

Automatic lower Lateral support

option

option

option

Quick start device

option

option

option

Servo independent dual gripper

option

option

option

Sawblade intelligent slotting

option

option

option

Scoring saw electric adjust

option

option

option

Pneumatic change sawblade

option

option

option

Metal air-float worktable

option

option

option

Cutting length

2800mm

3300mm

3800mm

Max.cutting thickness

120mm

120mm

120mm

Outer diameter of main saw

Φ300-450mm

Φ300-450mm

Φ300-450mm

Inner diameter of main saw

Φ75mm

Φ75mm

Φ75mm

Outer diameter of scoring saw

Φ200mm

Φ200mm

Φ200mm

Inner diameter of scoring saw

Φ50mm

Φ50mm

Φ50mm

Main saw rotary speed

0-4100r/min

0-4100r/min

0-4100r/min

Scoring saw rotary speed

0-6200r/min

0-6200r/min

0-6200r/min

Saw unit forward speed

100m/min (adjustable)

100m/min (adjustable)

100m/min (adjustable)

Saw unit back speed

120m/min (adjustable)

120m/min (adjustable)

120m/min (adjustable)

Main saw motor power

18.5kw

18.5kw

18.5kw

Scoring saw motor power

2.2kw

2.2kw

2.2kw

Saw unit driving motor power

2kw (Inovance Servo)

2kw (Inovance Servo)

2kw (Inovance Servo)

Feeding and positioning motor power

2kw (Inovance Servo)

2kw (Inovance Servo)

2kw (Inovance Servo)

High pressure blower

4kw+2.2kw

4kw+2.2kw

4kw+2.2kw

Total power

32kw

32kw

32kw

Positioning way

Automatic

Automatic

Automatic

Servo positioning precision

0.02mm

0.02mm

0.02mm

Cutting precision

±0.1mm

±0.1mm

±0.1mm

Air pressure

0.6-0.8Mpa

0.6-0.8Mpa

0.6-0.8Mpa

Worktable height

950mm

950mm

950mm

Mechanical gripper

9 piece (Dual gripper)

9 piece (Dual gripper)

9 piece (Dual gripper)

Overall size

5160*5500*1900mm

5660*5900*1900mm

6160*6400*1900mm
