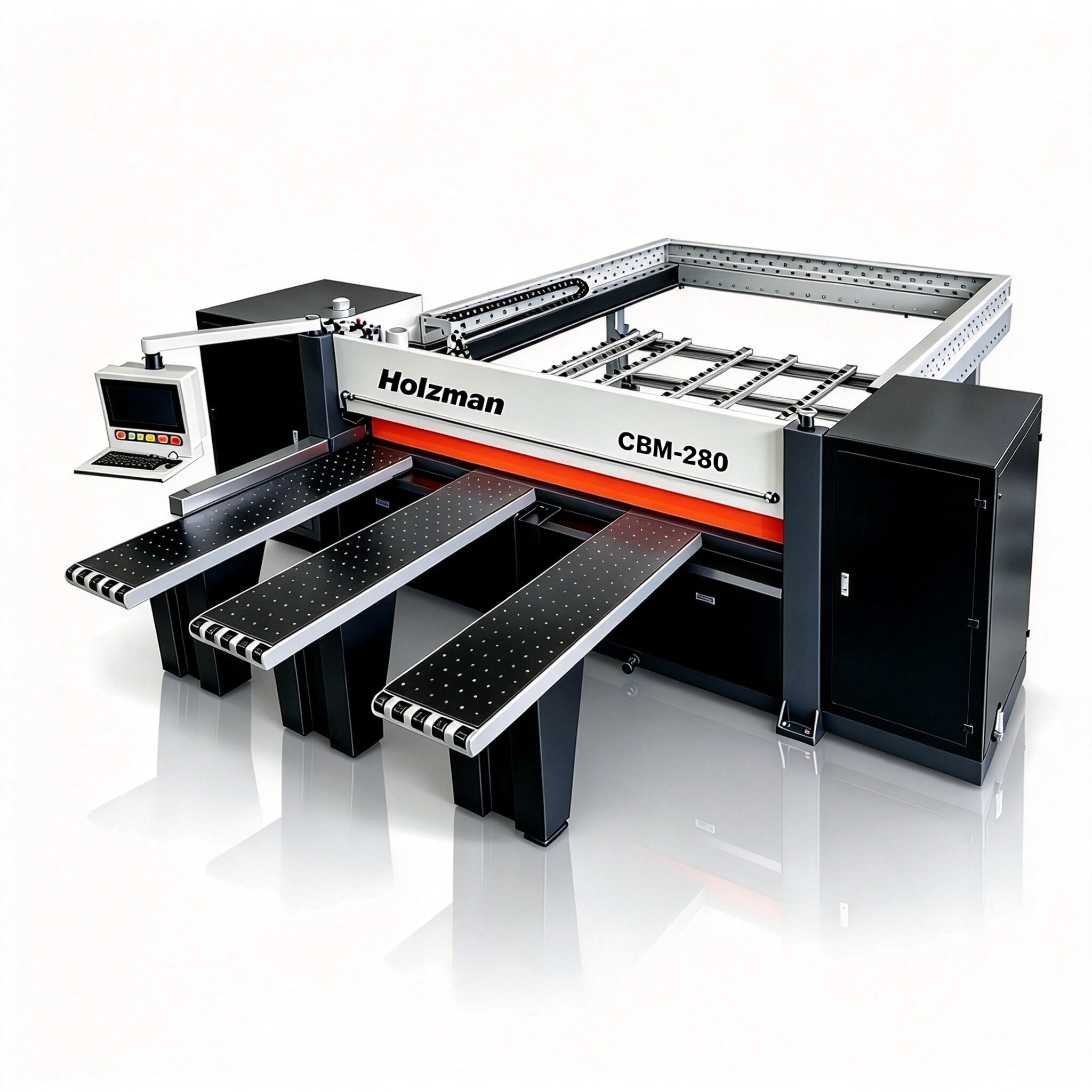

Model | CBM280 (Economic) | CBM330 (Economic) | CBM380 (Economic) |
Cutting length | 2800mm | 3300mm | 3800mm |
Cutting thickness | 75mm | 100mm | 100mm |
Main saw diameter | φ380-400mm | φ380-400mm | φ380-400mm |
Main saw inner diameter | Φ75mm | Φ75mm | Φ75mm |
Scoring saw diameter | Φ200mm | Φ200mm | Φ200mm |
Scoring saw inner diameter | Φ50 | Φ50 | Φ50 |
Saw unit cutting speed | 0-80m/min | 0-80m/min | 0-80m/min |
Saw unit back speed | 0-100m/min | 0-100m/min | 0-100m/min |
Main saw driving motor power | 15kw | 15kw | 15kw |
Scoring saw driving motor power | 2.2kw | 2.2kw | 2.2kw |
Saw Unit servo driving power | 1.3kw | 1.3kw | 1.3kw |
Feeding servo driving power | 1.3kw | 1.3kw | 1.3kw |
High pressure blower | 3kw | 3kw | 3kw |
Automatic feeding speed | 0-90m/min | 0-90m/min | 0-90m/min |
Worktable height | 960mm | 960mm | 960mm |
Total power | 23kw | 23kw | 23kw |
Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ |
Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
Machine weight | 5300kg | 5500kg | 5800kg |
